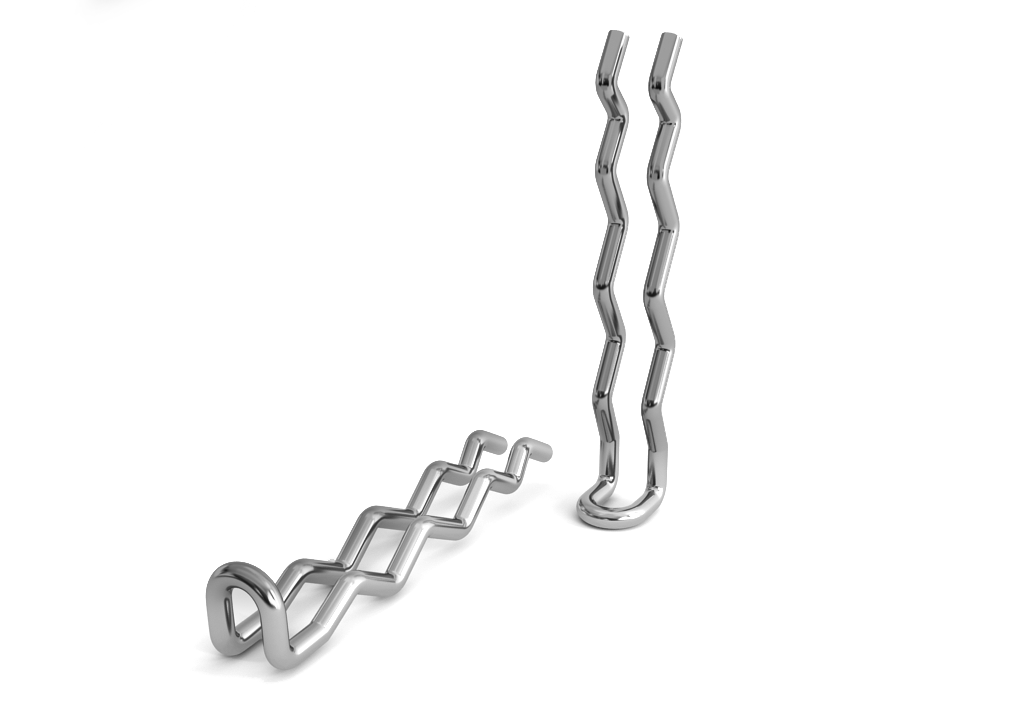

Dual Pin Corrugated U Base Refractory Anchors are designed to provide robust and reliable support for refractory linings in high-temperature industrial applications such as furnaces, kilns, and reactors. The corrugated dual-pin design combined with a U-shaped base enhances mechanical bonding, ensures uniform load distribution, and minimizes displacement of refractory material under extreme thermal and mechanical stress.
These anchors are manufactured from high-quality materials, including stainless steel grades (SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321), nickel alloys (Inconel, Incoloy, Hastelloy), and mild/alloy steel. The corrugated U-base configuration improves adhesion to refractory linings, allows for secure installation, and provides excellent resistance to corrosion, oxidation, and high temperatures.
Navkar Precision Fittings applies advanced manufacturing techniques and stringent quality control to deliver Dual Pin Corrugated U Base Refractory Anchors that are durable, reliable, and long-lasting. These anchors are ideal for industrial environments requiring strong, precise, and high-performance refractory anchoring solutions.
| Material Type | Details |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 – suitable for general-purpose and moderate to high temperatures |
| Nickel Alloys | Inconel 600, Inconel 625, Incoloy 800, Hastelloy – ideal for extreme temperatures and corrosive environments |
| Mild & Alloy Steel | For moderate temperature applications |
| Parameter | Specification |
|---|---|
| Rod Diameter | 6 mm – 12 mm |
| Length | 75 mm – 500 mm (customized per refractory lining thickness) |
| Pin Diameter | 6 mm – 12 mm |
| Pin Spacing | As per design or client specification |
| Surface Finish | Mill finish / pickled & passivated |
| Welding Type | Stud-welded, tack-welded, or threaded installation options available |
Premium-quality dual pin corrugated U-base refractory anchors designed for superior stability, thermal resistance, and long-lasting performance in high-temperature industrial lining applications.
Navkar Precision is a leading manufacturer of Dual Pin Corrugated U-Base Anchors, designed to provide exceptional strength, stability, and performance in demanding refractory applications.
These anchors are extensively used in furnaces, kilns, reactors, boilers, and petrochemical processing units where superior thermal resistance and secure refractory retention are essential.
Manufactured with precision engineering and premium-grade materials, our Dual Pin Corrugated U-Base Anchors ensure long service life, excellent mechanical bonding, and reliable performance under extreme operating conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality Dual Pin Corrugated U-Base Anchors engineered for superior strength, thermal stability, and dependable performance in critical refractory applications.
Designed to withstand extreme heat and thermal cycling conditions.
Provides secure retention and improved refractory lining stability.
Offers better flexibility and mechanical bonding performance.
Ensures accurate dimensions and consistent product quality.
Suitable for aggressive industrial and high-temperature environments.
Our Dual Pin Corrugated U-Base Anchors are widely used in high-temperature industrial environments requiring superior refractory support, thermal stability, and long-lasting mechanical strength.
Provides reliable refractory retention in high-temperature furnace operations.
Suitable for reactors, heaters, and process units exposed to extreme heat.
Ensures durable refractory lining support in continuous thermal cycling conditions.
Maintains structural stability and thermal resistance in combustion systems.
Designed for demanding metallurgical applications with intense operating temperatures.
Supports refractory linings in thermal processing and heat treatment equipment.
Partner with Navkar Precision for high-performance Dual Pin Corrugated U-Base Anchors engineered for superior refractory support, thermal resistance, and long-lasting industrial reliability.
