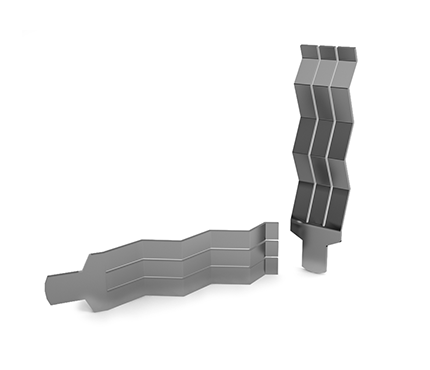

E Shaped Y Base Corrugated Strip Refractory Anchors are designed to provide reliable and durable support for refractory linings in high-temperature industrial applications such as furnaces, kilns, and reactors. The E-shaped design with a Y-shaped base and corrugated strip ensures enhanced mechanical bonding, optimal load distribution, and minimal displacement of refractory materials under thermal and mechanical stress.
These anchors are manufactured from premium materials including stainless steel grades (SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321), nickel alloys (Inconel, Incoloy, Hastelloy), and mild/alloy steel. The corrugated Y base increases surface contact with refractory linings, providing superior stability, corrosion resistance, and long-lasting durability even in extreme temperature environments.
Navkar Precision Fittings combines precision engineering with stringent quality control to deliver E Shaped Y Base Corrugated Strip Refractory Anchors that ensure consistent performance and long-term reliability. These anchors are ideal for industrial environments where strong, precise, and durable refractory anchoring solutions are required.
| Material Type | Details |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 – suitable for general-purpose and moderate to high temperatures |
| Nickel Alloys | Inconel 600, Inconel 625, Incoloy 800, Hastelloy – ideal for extreme temperatures and corrosive environments |
| Mild & Alloy Steel | For moderate temperature applications |
| Parameter | Specification |
|---|---|
| Rod Diameter | 6 mm – 12 mm |
| Length | 75 mm – 500 mm (customized as per refractory lining thickness) |
| Curvature Radius | As per design or client specification |
| Surface Finish | Mill finish / pickled & passivated |
| Welding Type | Stud-welded, tack-welded, or threaded installation options available |
Premium refractory support solutions designed for superior thermal stability, secure lining retention, and long-lasting performance in demanding industrial applications.
Navkar Precision is a leading manufacturer of E-Shaped Anchors and Y Base Corrugated Strips, developed for high-strength refractory and insulation support systems.
These components are extensively used in cement plants, steel furnaces, petrochemical units, boilers, and thermal processing industries where superior holding strength and thermal resistance are essential.
Manufactured with precision engineering and premium-grade materials, our anchoring systems ensure reliable performance, dimensional accuracy, and extended service life in extreme operating environments.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality refractory support systems engineered for exceptional durability, thermal stability, and dependable performance in harsh industrial environments.
Designed to withstand high-temperature industrial operations efficiently.
Provides strong support and secure retention for refractory linings.
Manufactured with accurate dimensions for reliable installation performance.
Ensures long service life with reduced maintenance requirements.
Suitable for demanding environments including cement and petrochemical industries.
Our refractory support systems are extensively used in industries requiring high thermal resistance, strong structural support, and reliable long-term performance.
Widely used in kilns, cyclones, and refractory lining support systems.
Suitable for furnaces and high-temperature processing applications.
Provides dependable refractory retention in corrosive operating environments.
Ensures durability and stability in boilers and thermal equipment.
Maintains refractory integrity under continuous thermal exposure.
Supports refractory linings in demanding heat-processing operations.
Partner with Navkar Precision for high-quality refractory support solutions engineered for durability, thermal stability, and reliable industrial performance.
