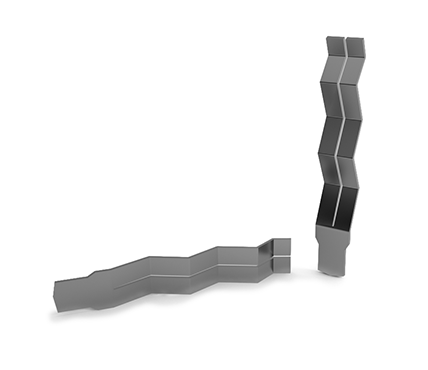

U Shaped Y Base Corrugated Strip Refractory Anchors are engineered to provide strong and reliable support for refractory linings in high-temperature industrial applications, including furnaces, kilns, and reactors. The U-shaped design with a Y-shaped base and corrugated strip ensures enhanced mechanical bonding and even load distribution, minimizing displacement and improving the longevity of the refractory lining.
These anchors are manufactured from premium materials such as stainless steel grades (SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321), nickel alloys (Inconel, Incoloy, Hastelloy), and mild/alloy steel. The corrugated Y base design increases contact with the refractory material, providing superior stability, resistance to corrosion, and durability under extreme thermal and mechanical stress.
Navkar Precision Fittings combines advanced manufacturing techniques with stringent quality control to deliver U Shaped Y Base Corrugated Strip Refractory Anchors that are highly durable, reliable, and ideal for demanding industrial environments. These anchors ensure precise, long-lasting fixation for high-performance refractory linings.
| Material Type | Details |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 – suitable for general-purpose and moderate to high temperatures |
| Nickel Alloys | Inconel 600, Inconel 625, Incoloy 800, Hastelloy – ideal for extreme temperatures and corrosive environments |
| Mild & Alloy Steel | For moderate temperature applications |
| Parameter | Specification |
|---|---|
| Rod Diameter | 6 mm – 12 mm |
| Length | 75 mm – 500 mm (customized as per refractory lining thickness) |
| Curvature Radius | As per design or client specification |
| Surface Finish | Mill finish / pickled & passivated |
| Welding Type | Stud-welded, tack-welded, or threaded installation options available |
Premium-grade Y base corrugated refractory anchors designed for superior strength, thermal resistance, and reliable support in high-temperature industrial lining applications.
Navkar Precision is a leading manufacturer of U-Shaped Y Base Corrugated refractory anchors, designed to provide exceptional stability and support in high-temperature industrial environments.
These anchors are extensively used in furnaces, kilns, reactors, and refractory lining systems across cement, steel, petrochemical, and power generation industries.
Manufactured with precision engineering and premium-grade materials, our corrugated anchor systems ensure excellent thermal resistance, mechanical strength, and long-lasting performance under extreme conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality U-Shaped Y Base Corrugated refractory anchors engineered for superior strength, thermal stability, and long-lasting performance in demanding industrial applications.
Designed to withstand extreme temperatures and thermal cycling conditions.
Corrugated structure provides stronger bonding within refractory linings.
Manufactured with high dimensional accuracy for reliable installation.
Offers long operational life with reduced maintenance requirements.
Suitable for harsh industrial and high-temperature environments.
Our U-Shaped Y Base Corrugated refractory anchors are extensively used in industries requiring superior thermal resistance, strong refractory support, and reliable performance in high-temperature environments.
Widely used in kilns, cyclones, and refractory lining systems exposed to extreme heat.
Provides durable refractory support in furnaces, ladles, and heat processing units.
Suitable for reactors and process units operating under corrosive and high-temperature conditions.
Ensures structural stability in boilers, thermal systems, and combustion chambers.
Maintains strong refractory anchoring and long-term durability during continuous operations.
Designed for reliable performance in high-stress thermal processing environments.
Connect with Navkar Precision for precision-engineered refractory anchors designed to deliver superior thermal resistance, durability, and reliable performance in demanding industrial applications.
