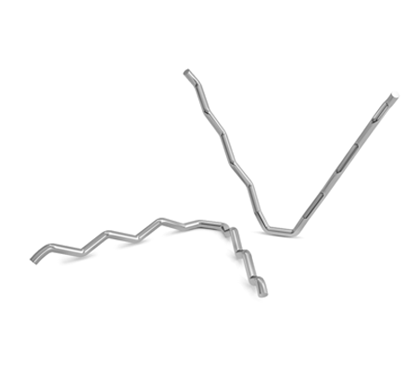

V-Shaped Corrugated Flat Base Refractory Anchors are engineered to provide exceptional strength and stability to refractory linings in furnaces, kilns, reactors, and other high-temperature process vessels. The V-shaped profile combined with corrugation ensures improved mechanical grip within the castable, reducing the risk of slippage or lining failure. The flat base design allows for easy welding and secure attachment to the shell, making these anchors ideal for demanding thermal and mechanical operating environments.
At Navkar Precision, these anchors are manufactured using the finest quality raw materials, ensuring performance and durability in harsh industrial conditions. They are available in Stainless Steel grades (SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321) for high heat resistance, Nickel Alloys (Inconel 600, Inconel 800, Hastelloy) for extreme corrosion and thermal environments, and Mild Steel/Alloy Steel for moderate temperature applications. Each anchor is produced under strict dimensional accuracy and quality control to meet global standards.
The corrugated structure of the V anchor enhances its load-bearing capacity and promotes better bonding with refractory castables, making it especially effective in applications where thermal cycling and mechanical stress are frequent. Industries such as cement, petrochemical, steel, glass, and power plants rely on V-Shaped Corrugated Flat Base Anchors for long-lasting lining protection and reduced maintenance downtime. With customizable dimensions, angles, and finishes, Navkar Precision ensures that every anchor matches the unique requirements of its clients.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Engineered for superior refractory performance, these corrugated flat base anchors provide enhanced bonding strength, excellent load distribution, and high resistance to thermal stress in extreme industrial environments.
Navkar Precision manufactures high-quality V-Shaped Corrugated Flat Base Anchors designed for enhanced refractory support and long-term structural stability.
The corrugated design improves mechanical interlocking with refractory materials, while the flat base ensures firm anchoring and uniform load distribution across the lining surface.
These anchors are widely used in cement plants, furnaces, kilns, petrochemical units, and power generation industries where high temperature resistance and durability are critical.
Built for both standard and heavy-duty applications, our anchors deliver excellent thermal shock resistance, reduced stress points, and superior performance in extreme industrial conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we specialize in manufacturing corrugated flat base V-shaped anchors designed to deliver superior bonding, structural stability, and long-lasting performance in high-temperature industrial environments.
Corrugated profile ensures stronger interlocking with refractory materials.
Provides firm support and even load distribution across the lining.
Maintains structural integrity under extreme temperature conditions.
Ensures consistent dimensions and reliable performance in every batch.
Suitable for harsh industrial and chemical environments.
Reduces maintenance frequency and improves operational efficiency.
Engineered for superior bonding and structural stability, our corrugated flat base V-anchors are widely used in high-temperature and heavy-duty industrial applications where refractory performance is critical.
Ensures strong refractory anchoring in high-temperature rotary kilns and cyclone systems.
Provides reliable support for refractory linings under continuous heat and thermal cycling.
Performs efficiently in corrosive environments with high chemical exposure.
Maintains structural integrity in high-pressure and high-temperature conditions.
Supports dense refractory linings in extreme load and temperature environments.
Ideal for aggressive thermal environments requiring long-lasting anchor performance.
At Navkar Precision, we offer fully customized corrugated flat base V-anchor solutions tailored to specific refractory designs, operating conditions, and industrial requirements for optimal performance and durability.
Need high-performance refractory anchors built to your specifications? Contact Navkar Precision for precision-engineered solutions, custom sizes, and material options designed for extreme industrial conditions.
