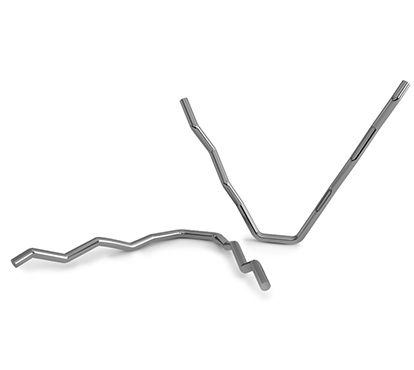

V-Shaped Corrugated Short Leg Flat Base Refractory Anchors are designed to deliver superior mechanical strength and thermal stability in refractory lining systems. The unique V-shape with corrugation enhances anchoring efficiency, while the short leg design reduces stress concentration and ensures firm bonding with the castable. The flat base provides a strong welding surface, making these anchors highly reliable in heavy-duty thermal processing units such as furnaces, reformers, and kilns.
At Navkar Precision, these anchors are manufactured in a wide range of materials to suit diverse operating conditions. Options include Stainless Steel (SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321) for high heat resistance, Nickel Alloys (Inconel 600, Inconel 800, Hastelloy) for extreme corrosion and temperature environments, and Mild Steel/Alloy Steel for moderate heat applications. Each anchor is crafted with precision engineering, strict quality checks, and adherence to international standards to guarantee long-lasting performance.
The corrugated short leg construction minimizes the risk of lining failure due to thermal cycling or mechanical load while ensuring uniform stress distribution. These anchors are widely used in industries such as cement, petrochemical, steel, glass, and power generation, where refractory reliability is critical. With customizable dimensions, angles, and surface finishes, Navkar Precision offers tailored anchoring solutions that meet the exact requirements of different refractory lining designs.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Corrugated V-shaped refractory anchors designed with a short leg and flat base configuration for enhanced mechanical bonding, superior thermal resistance, and long service life in demanding high-temperature environments.
Navkar Precision manufactures high-quality V-Shaped Corrugated Anchors with short leg and flat base design, engineered for strong mechanical bonding and reliable performance in refractory linings.
The corrugated structure enhances grip within castables, while the flat base configuration ensures stable installation and improved load distribution in high-temperature environments.
Widely used across cement plants, furnaces, petrochemical units, and power generation industries, these anchors provide excellent resistance to thermal cycling, mechanical stress, and long-term wear.
Designed for durability and precision, our anchors ensure extended service life and dependable performance in demanding industrial conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we specialize in manufacturing corrugated V-shaped anchors with short leg and flat base design, delivering superior bonding strength, thermal stability, and long-term performance in demanding refractory applications.
Corrugated design improves grip within castables for stronger anchoring.
Ensures efficient load distribution and reduces stress concentration.
Provides firm positioning and improved installation stability.
Performs consistently under extreme temperatures and thermal cycling.
Suitable for harsh industrial environments with extended service life.
V-shaped corrugated anchors with short leg and flat base design are widely used in industries requiring strong mechanical bonding, thermal stability, and long-term performance in refractory systems.
Ideal for kiln linings and cyclones where strong refractory bonding is essential.
Used in furnaces and ladles exposed to extreme temperatures and mechanical stress.
Performs reliably in reactors and processing units with corrosive environments.
Ensures durability in boilers, ducts, and high-temperature insulation systems.
Maintains structural integrity and reduces refractory failure during thermal cycling.
Corrugated design enhances interlocking within castables for improved performance.
Navkar Precision offers customized V-shaped corrugated anchors with short leg and flat base design, tailored to meet precise project specifications for optimal performance in refractory applications.
Partner with Navkar Precision for V-shaped corrugated anchors with short leg and flat base design—engineered for superior bonding, thermal resistance, and long-lasting reliability in demanding industrial environments.
