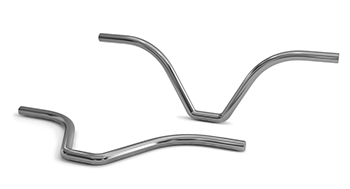

V Shaped Curved Winged Flat Base Refractory Anchors are designed to provide superior stability and support in high-temperature refractory linings. The V-shaped structure ensures even load distribution, while the curved winged design enhances the grip on refractory materials, preventing dislodgement under thermal expansion and contraction. The flat base configuration allows for easy welding and installation, making these anchors highly effective in furnaces, boilers, kilns, and other heat-intensive industrial systems.
Manufactured from premium-grade materials, these anchors are available in Stainless Steel (304, 304L, 310, 310S, 316, 316L, 321) for reliable heat and corrosion resistance. For more demanding environments, Nickel Alloys such as Inconel 600, Inconel 800, and Hastelloy are used to withstand extreme temperatures and corrosive atmospheres. Mild Steel and Alloy Steel options are also offered for moderate temperature applications, providing cost-effective yet dependable anchoring solutions across industries.
V Shaped Curved Winged Flat Base Anchors are widely applied in cement industries, steel plants, power generation units, and petrochemical refineries. Their unique curved wing structure provides enhanced refractory holding power, reducing the risk of spalling and extending the service life of refractory linings. With a design that combines durability, strength, and ease of installation, these anchors help industries achieve greater operational efficiency and lining performance in critical high-temperature applications.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Precision-engineered refractory anchors designed with curved wing support and flat base stability for superior lining retention, thermal resistance, and long-lasting industrial performance.
Navkar Precision manufactures high-quality V-Shaped Curved Winged Flat Base Anchors engineered for superior refractory support, thermal stability, and long-term industrial durability.
These specially designed anchors are widely used in furnaces, kilns, reactors, incinerators, and high-temperature processing units across steel, cement, petrochemical, and power generation industries.
The curved wing structure improves refractory holding strength, while the flat base design enhances welding stability and installation precision, ensuring reliable performance under extreme operating conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality refractory anchors designed for exceptional thermal performance, structural stability, and reliable operation in high-temperature industrial environments.
Curved wing construction provides stronger refractory holding and minimizes lining displacement.
Performs efficiently under extreme heat and repeated thermal cycling conditions.
Flat base design ensures better welding alignment and secure installation strength.
Manufactured with strict dimensional accuracy for consistent industrial performance.
Suitable for demanding industrial applications exposed to corrosive and abrasive environments.
Designed for durability and reduced maintenance in continuous high-temperature operations.
Our refractory anchor systems are widely used in high-temperature industrial environments requiring superior thermal resistance, secure refractory support, and long-term operational reliability.
Provides strong refractory retention in continuous high-temperature furnace operations.
Commonly used in rotary kilns, cyclones, and refractory-lined processing equipment.
Designed for demanding thermal environments with heavy-duty refractory applications.
Suitable for reactors, heaters, and process vessels exposed to high heat and corrosive conditions.
Ensures reliable refractory anchoring in thermal systems operating under extreme temperatures.
Maintains structural stability and refractory integrity during continuous thermal cycling.
Partner with Navkar Precision for high-performance refractory anchor solutions engineered for superior thermal stability, secure refractory support, and long-lasting industrial reliability.
