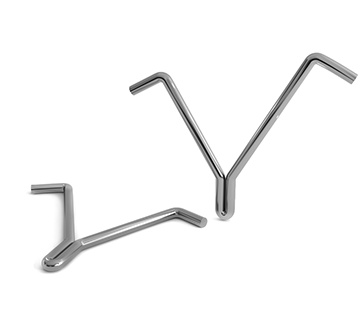

V Shaped Down Winged Joined Base Refractory Anchors are specially designed to provide maximum reinforcement and superior grip within refractory linings. The down winged profile ensures deeper mechanical locking inside castable refractories, while the joined base construction provides a solid welding surface for added strength and stability. This combination helps distribute thermal stresses evenly, reducing the risk of refractory cracking, spalling, and structural weakening in high-temperature furnaces, kilns, and incinerators.
Manufactured in a variety of high-performance alloys, these anchors are available in Stainless Steel grades such as SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, and SS 321, ensuring resistance to scaling, oxidation, and thermal fatigue. For harsher operating conditions, Nickel Alloys including Inconel 600, Inconel 800, and Hastelloy offer excellent performance under extreme heat and corrosive atmospheres. Additionally, Mild Steel and Alloy Steel versions are supplied for moderate temperature applications where cost-efficiency is a priority without compromising durability.
These V Shaped Down Winged Joined Base Anchors are widely used in cement plants, petrochemical refineries, steel industries, power generation units, and waste incineration systems. Their unique design provides enhanced anchorage, better load distribution, and longer refractory lining service life, making them ideal for critical applications that demand reliable structural integrity under thermal cycling. With customizable dimensions and base configurations, these anchors deliver efficient refractory performance with reduced downtime and maintenance costs.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Precision-engineered refractory anchor systems designed for superior thermal stability, secure installation, and long-lasting performance in high-temperature industrial applications.
Navkar Precision manufactures premium-quality V-Shaped Down Winged Joined Base Anchors designed for high-strength refractory support in demanding industrial environments.
These specially engineered anchors provide enhanced stability, superior grip, and improved load distribution, making them ideal for cement plants, steel furnaces, petrochemical units, and thermal processing systems.
Built with precision fabrication and high-grade materials, our anchor systems deliver exceptional thermal resistance, structural integrity, and long-term durability under extreme operating conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture advanced V-Shaped Down Winged Joined Base Anchors engineered for maximum strength, thermal stability, and dependable performance in high-temperature industrial applications.
Joined base construction provides stronger support and improved refractory retention.
Designed to withstand extreme industrial temperatures without deformation.
Down wing configuration ensures superior grip and better load distribution.
Manufactured with strict dimensional accuracy for consistent installation performance.
Built using high-quality materials for extended service life in harsh environments.
Our V-Shaped Down Winged Joined Base Anchors are engineered for demanding industrial applications requiring superior thermal resistance, structural stability, and long-lasting refractory support.
Widely used in rotary kilns, cyclones, and refractory linings exposed to continuous high temperatures.
Provides strong refractory anchoring in furnaces, ladles, and heavy-duty thermal processing systems.
Suitable for reactors and process units requiring corrosion resistance and thermal durability.
Ensures reliable performance in boilers, heat recovery systems, and thermal power equipment.
Maintains refractory stability and structural integrity under continuous heat exposure.
Designed for aggressive industrial environments where strength and long service life are essential.
Navkar Precision offers fully customized V-Shaped Down Winged Joined Base Anchors designed to meet unique industrial requirements, ensuring superior refractory support, thermal stability, and long-term operational reliability.
Partner with Navkar Precision for high-performance V-Shaped Down Winged Joined Base Anchors engineered for strength, thermal resistance, and reliable industrial performance in the most demanding environments.
