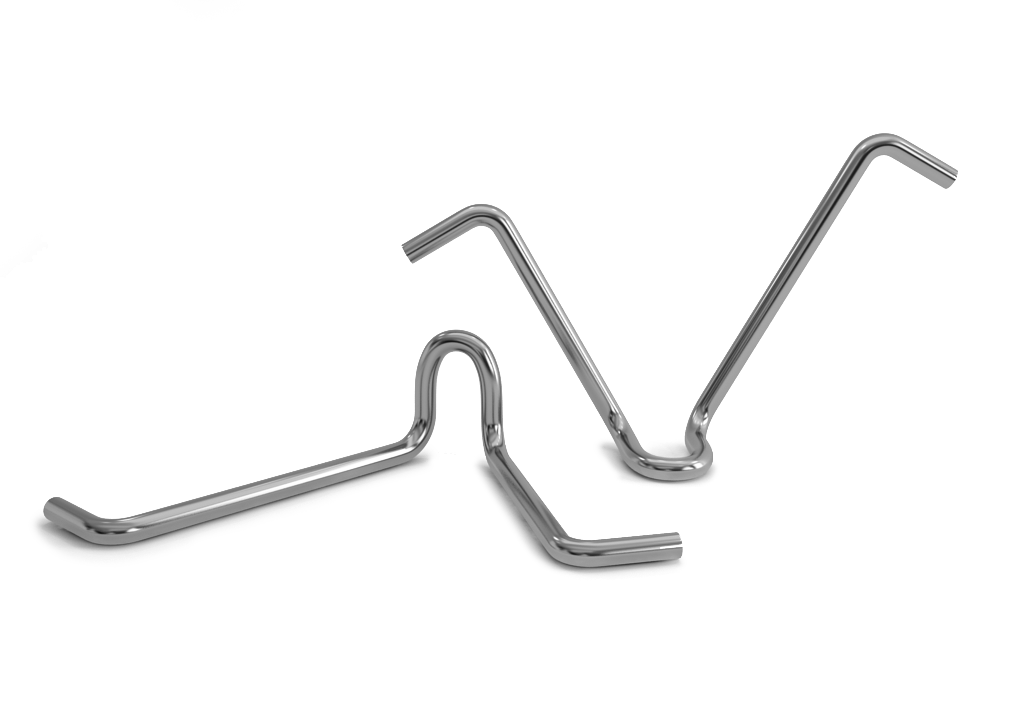

V Shaped Down Winged Short Leg U Base Refractory Anchors are engineered for secure anchorage and stability in high-temperature refractory applications. The V-shaped profile distributes loads evenly, while the down winged design enhances grip, ensuring the refractory lining remains firmly in place even under severe thermal cycling. The short leg U base allows for precise welding and ease of installation, making these anchors a preferred choice for lining systems in furnaces, kilns, and reactors.
These anchors are manufactured in high-performance alloys and steels to meet the varying demands of industrial environments. Options include Stainless Steel grades 304, 304L, 310, 310S, 316, 316L, and 321, all known for their excellent heat and corrosion resistance. For more extreme service conditions, Nickel-based alloys like Inconel 600, Inconel 800, and Hastelloy are used to withstand aggressive chemical and thermal conditions. Additionally, Mild Steel and Alloy Steel variants are available for standard temperature applications, offering a cost-effective yet reliable anchoring solution.
V Shaped Down Winged Short Leg U Base Anchors find extensive use in cement industries, steel plants, petrochemical refineries, and thermal power stations. Their reinforced down winged structure provides exceptional holding strength, reducing the chances of lining failure during prolonged operations. By offering durability, thermal efficiency, and ease of installation, these anchors help industries extend refractory lining life, minimize downtime, and improve overall system reliability.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Precision-engineered refractory anchor systems designed for superior holding strength, thermal stability, and long-lasting performance in demanding high-temperature industrial applications.
Navkar Precision manufactures high-quality V Shaped Down Winged Short Leg U Base Anchors designed for superior refractory support and long-lasting structural stability in extreme industrial conditions.
These refractory anchors are widely used in furnaces, kilns, reactors, boilers, and petrochemical processing units where reliable anchoring performance and resistance to thermal stress are essential.
Engineered using precision fabrication techniques and premium-grade stainless steel materials, our anchor systems provide excellent mechanical strength, thermal flexibility, and extended service life for both light and heavy refractory linings.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality refractory anchor systems engineered for exceptional strength, thermal stability, and long-term performance in demanding industrial applications.
Designed to withstand high-temperature environments without structural deformation.
Provides secure mechanical anchoring for refractory linings in furnaces and reactors.
Manufactured with accurate dimensions and consistent quality for reliable industrial performance.
Produced using high-grade stainless steel for superior resistance against oxidation and corrosion.
Built for durability to minimize maintenance requirements and improve service longevity.
Our refractory anchor systems are widely used in high-temperature industrial environments requiring strong refractory support, thermal stability, and long-term operational reliability.
Provides reliable anchoring support for refractory linings in continuous high-heat furnace operations.
Suitable for reactors and process vessels exposed to thermal stress and corrosive industrial conditions.
Used in kilns and calcination systems requiring durable refractory retention and thermal resistance.
Ensures stable refractory attachment in boilers, incinerators, and thermal processing equipment.
Designed for harsh steel manufacturing environments involving continuous heat exposure and vibration.
Delivers long-lasting refractory support in refinery heaters, ducts, and high-temperature process systems.
Partner with Navkar Precision for high-performance refractory anchor solutions engineered for superior strength, thermal resistance, and long-lasting industrial reliability.
