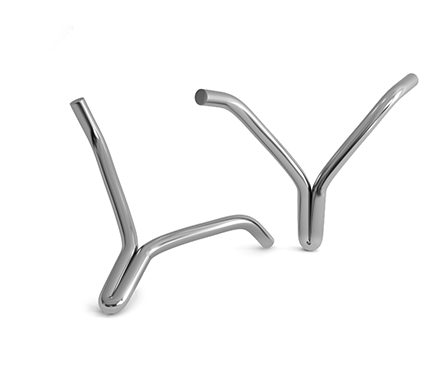

V Shaped Odd Leg Joined Base Refractory Anchors are engineered to provide strong structural support and superior anchorage in refractory linings. The odd leg design offers flexibility in installation, allowing for a secure hold even in areas with uneven refractory thickness or complex layouts. Combined with the joined base construction, these anchors provide a stable welding surface that ensures firm fixation to the furnace shell or metal casing, improving the overall stability of refractory linings.
These anchors are manufactured in a wide range of materials to suit diverse operating environments. Options include Stainless Steel grades SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, and SS 321, offering durability and resistance to scaling and oxidation at high temperatures. For extreme heat and chemical exposure, Nickel Alloys such as Inconel 600, Inconel 800, and Hastelloy provide long-lasting performance. Where applications involve moderate thermal conditions, Mild Steel and Alloy Steel versions are available to balance cost-effectiveness with dependable performance.
V Shaped Odd Leg Joined Base Anchors are extensively used in cement kilns, steel plants, petrochemical units, power boilers, and incinerators, where refractory linings are subjected to thermal shocks, cyclic heating, and corrosive gases. Their unique geometry ensures improved load distribution, enhanced grip within castables, and longer service life of linings, reducing maintenance downtime. With customizable sizes and specifications, these anchors are an ideal choice for industries seeking robust refractory support solutions.
| Specification | Details |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm (customized as per lining thickness) |
| Angle Opening of V | 30° to 120° (as per design requirement) |
| Surface Finish | Mill finish / Pickled & Passivated |
| Material Category | Grades / Applications |
|---|---|
| Stainless Steel | SS 304, SS 304L, SS 310, SS 310S, SS 316, SS 316L, SS 321 |
| Nickel Alloys | Inconel 600, Inconel 800, Hastelloy (for extreme temperature & corrosion environments) |
| Mild Steel / Alloy Steel | For moderate temperature applications |
Precision-engineered refractory anchor systems designed with odd leg joined base construction for superior strength, thermal stability, and long-lasting performance in high-temperature applications.
Navkar Precision manufactures premium-quality V-Shaped Odd Leg Joined Base Anchors designed for demanding refractory lining and high-temperature industrial environments.
Engineered with precision, these anchors provide excellent mechanical strength, enhanced thermal resistance, and reliable support for refractory castables across cement, steel, petrochemical, and power generation industries.
The odd leg joined base design improves stability and anchoring performance, ensuring long service life, reduced maintenance, and dependable operation under extreme thermal conditions.
| SPECIFICATION | DETAILS |
|---|---|
| Wire/Rod Diameter | 3 mm – 12 mm |
| Length | 50 mm – 500 mm |
| Angle Opening of V | 30° to 120° |
| Surface Finish | Mill finish / Pickled & Passivated |
| MATERIAL CATEGORY | GRADES / APPLICATIONS |
|---|---|
| Stainless Steel | SS 304, 304L, 310, 310S, 316, 316L, 321 |
| Nickel Alloys | Inconel 600, 800, Hastelloy |
| Mild / Alloy Steel | Moderate temperature applications |
At Navkar Precision, we manufacture premium-quality V-Shaped Odd Leg Joined Base Anchors engineered for superior durability, thermal stability, and long-term performance in demanding industrial applications.
Designed to withstand extreme temperature fluctuations without structural failure.
Odd leg joined base construction provides improved load distribution and anchoring support.
Manufactured with strict dimensional accuracy for consistent industrial performance.
Built for long-term durability, reducing maintenance and operational downtime.
Suitable for aggressive industrial environments and high-temperature processing systems.
Our V-Shaped Odd Leg Joined Base Anchors are widely used in industries requiring exceptional thermal resistance, mechanical stability, and long-term refractory support under extreme operating conditions.
Ideal for kilns, cyclones, and refractory lining systems exposed to continuous high temperatures.
Provides reliable refractory reinforcement in furnaces, ladles, and heat treatment systems.
Designed to withstand aggressive chemical environments and extreme thermal conditions.
Used in boilers, thermal plants, and high-temperature processing equipment for enhanced durability.
Maintains refractory stability and structural integrity during continuous heating cycles.
Ensures secure anchoring support in extreme combustion and waste processing environments.
Navkar Precision offers fully customized V-Shaped Odd Leg Joined Base Anchor solutions tailored to specific industrial requirements, ensuring superior refractory performance, durability, and precision engineering.
Partner with Navkar Precision for high-performance V-Shaped Odd Leg Joined Base Anchors engineered for superior refractory support, thermal stability, and long-lasting industrial reliability in demanding high-temperature environments.
